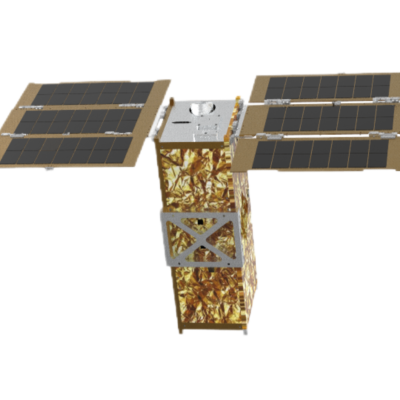

5kg satellite platform

Small size, light weight, high cost performance

The 5KG satellite platform is a highly integrated micro-satellite. The satellite platform is equipped with a multi-functional onboard computer, integrated flywheel control system, magnetic rod control system, whole-satellite power distribution system, and sensors such as magnetometer and gyroscope.

Deliver

Deliver satellite platform in 10 months

Production

Platform components

Low Costs

Satellite platform cost less than one million

self-R&D

Independently R&D&M,passed rigorous in orbit verification

Product parameters

	parameters	index
Platform capabilities	Specifications	(120mmx120.3mmx340.5mm)
	Power consumption of the whole star	The long-term power consumption < 20W, and the peak power consumption is 30W
	Pointing accuracy	1°
	Attitude stability	0.05°/s
	Positioning accuracy	Position accuracy: better than 10m (3-axis 1σ) Speed accuracy: better than 0.1m/s (3-axis 1σ)
	Data rate	5~20Mbps, with breakpoint resumable transmission capability
Carrying capacity	The load can carry mass	2-2.5KG
	The payload can be carried by volume	100 x 100 x 200 mm³
	Available power of the load	20W
	Load available voltage	3.3V/5V/12V
	Loads available interface	CAN / RS422 / LVDS / RS232

Our Mission

Let satellites reach life

Create high-quality, low-cost, and rapid-production commercial micro-nano satellites and their application ecological environment that meet application needs.

Business system

Produces and sells more than 20 types of satellite core components, provides full-process satellite consulting services, provides rights services such as sky experiments, product naming, and onboarding, and explores and develops the commercial value of traditional aerospace internal products, brands, and cooperation opportunities.
